Degas Bottle

Engine Cooling - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 5,881HTML edition
← Chapter contentsManual collection

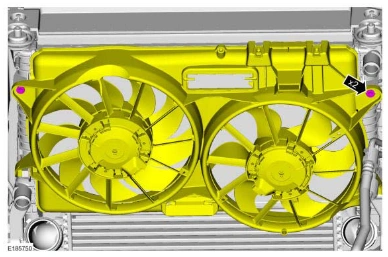

Torque

: 53 lb.in (6 Nm)

Degas Bottle — original illustration 1, reference 5881Original colors & callouts · Select to enlarge

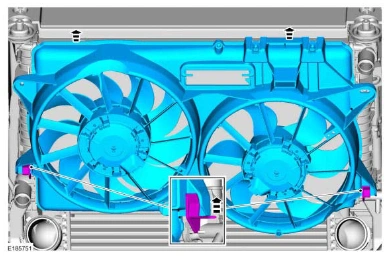

8. Remove the cooling fan motor and shroud.

Degas Bottle — original illustration 2, reference 5881Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > COOLING FAN MOTOR AND SHROUD >

INSTALLATION

1. To install, reverse the removal procedure.

2. Fill and bleed the cooling system. Refer to: Cooling System Draining and Vacuum Filling .

REMOVAL AND INSTALLATION > DEGAS BOTTLE

Degas Bottle

Special Tool(s) / General Equipment

Fluid Suction Gun

Hose Clamp Remover/Installer
