Degas Bottle — Removal

Engine Cooling - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 5,883HTML edition
← Chapter contentsManual collection

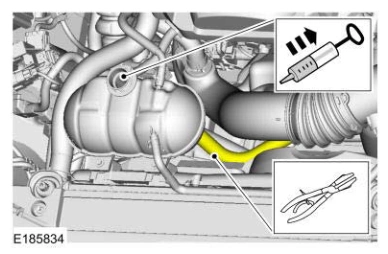

Degas Bottle — original illustration 1, reference 5883Original colors & callouts · Select to enlarge

3. Release the clamps, disconnect the upper degas bottle coolant hoses.

Use the General Equipment: Hose Clamp Remover/Installer

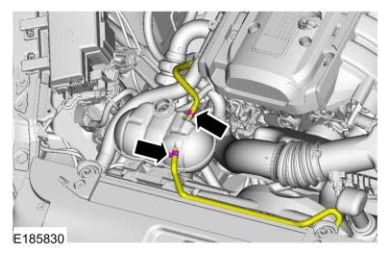

Degas Bottle — original illustration 2, reference 5883Original colors & callouts · Select to enlarge

4. Remove the bolts.

Torque

: 80 lb.in (9 Nm)

Degas Bottle — original illustration 3, reference 5883Original colors & callouts · Select to enlarge

5. Position the degas bottle and disconnect the lower coolant hose.

Use the General Equipment: Hose Clamp Remover/Installer
