Radiator — Removal — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5886

: 44 lb.in (5 Nm)

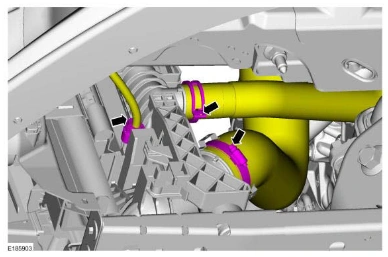

Radiator — original illustration 1, reference 5886Original colors & callouts · Select to enlarge

6. Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

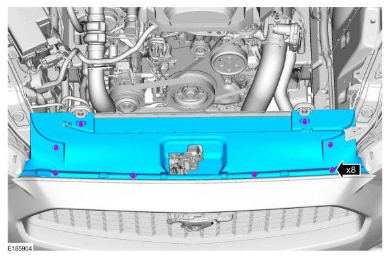

7. Remove the retainers and the radiator sight shield.

Radiator — original illustration 2, reference 5886Original colors & callouts · Select to enlarge

NOTE: Make sure that all openings are sealed.

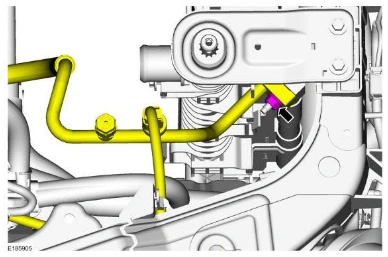

8. Remove the nut and disconnect the A/C compressor outlet line.

Torque

: 159 lb.in (18 Nm)

Radiator — original illustration 3, reference 5886Original colors & callouts · Select to enlarge
