Radiator — Removal — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5888

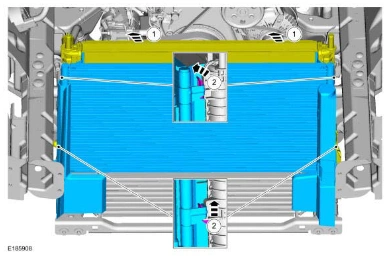

Radiator — original illustration 1, reference 5888Original colors & callouts · Select to enlarge

NOTE: Front bumper removed for clarity.

NOTE: If equipped.

12. Remove the bolts and position aside the transmission fluid cooler.

Torque

: 53 lb.in (6 Nm)

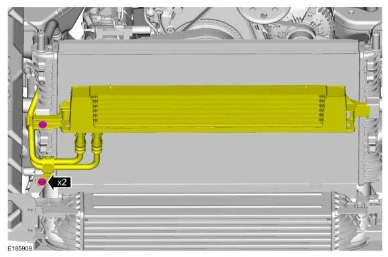

Radiator — original illustration 2, reference 5888Original colors & callouts · Select to enlarge

NOTE: Front bumper removed for clarity.

13. Remove the radiator and the CAC.

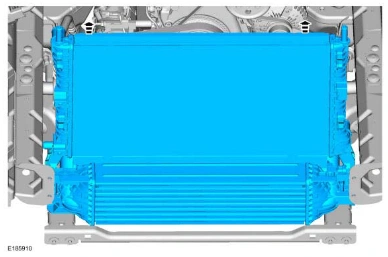

Radiator — original illustration 3, reference 5888Original colors & callouts · Select to enlarge
