Thermostat Housing — Installation — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5891

Release the clamp and disconnect the coolant hose.

Use the General Equipment: Hose Clamp Remover/Installer

Thermostat Housing — original illustration 1, reference 5891Original colors & callouts · Select to enlarge

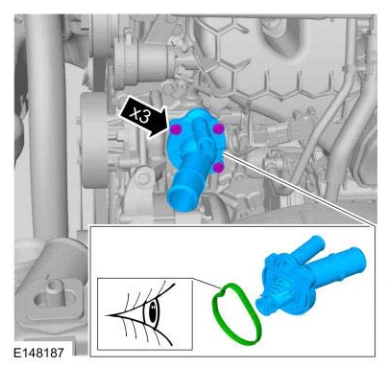

NOTE: Inspect the O-ring seal and replace if necessary.

7. Remove the bolts and the thermostat housing.

Torque

: 89 lb.in (10 Nm)

Thermostat Housing — original illustration 2, reference 5891Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > THERMOSTAT HOUSING > INSTALLATION

1. To install, reverse the removal procedure.

2. Fill and bleed the cooling system. Refer to: Cooling System Draining and Vacuum Filling .
