Thermostat Housing — Removal

Engine Cooling - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 5,890HTML edition
← Chapter contentsManual collection
Thermostat Housing — original illustration 1, reference 5890Original colors & callouts · Select to enlarge

3. Remove the air cleaner. Refer to: AIR CLEANER - 2.3L EcoBoost (231kW/314PS).

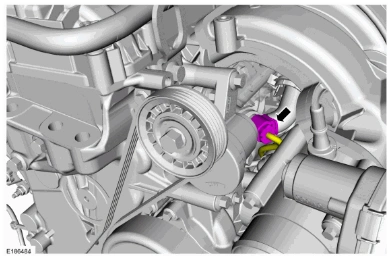

4. Disconnect the FRP electrical connector.

Thermostat Housing — original illustration 2, reference 5890Original colors & callouts · Select to enlarge

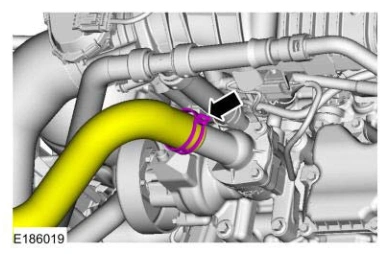

5. Release the clamp and disconnect the lower radiator hose.

Use the General Equipment: Hose Clamp Remover/Installer

Thermostat Housing — original illustration 3, reference 5890Original colors & callouts · Select to enlarge

6.
