Radiator — Removal — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5887

9. Release the clamp and disconnect the upper coolant hose.

Use the General Equipment: Hose Clamp Remover/Installer

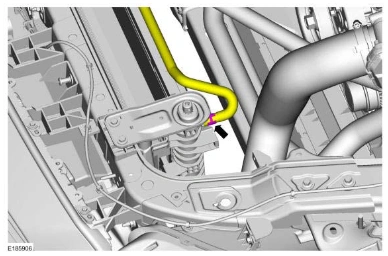

Radiator — original illustration 1, reference 5887Original colors & callouts · Select to enlarge

10. Remove the bolts and the upper radiator brackets.

Torque

: 97 lb.in (11 Nm)

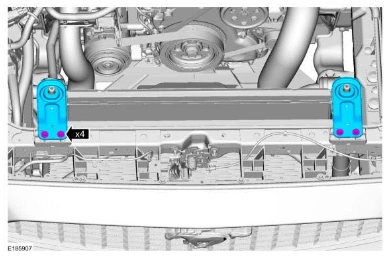

Radiator — original illustration 2, reference 5887Original colors & callouts · Select to enlarge

NOTE: Front bumper removed for clarity.

11.

1. Position the radiator towards the engine.

2. Release the upper tabs and remove the A/C condenser.
