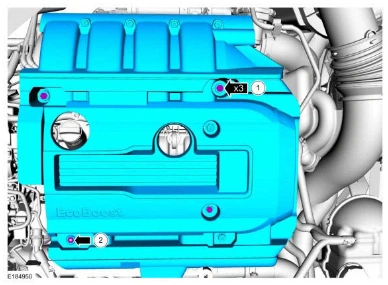

7. Install the engine appearance cover and the retainers.

Torque:

1: 53 lb.in (6 Nm)

2: 89 lb.in (10 Nm)

Cooling Fan Motor And Shroud — original illustration 1, reference 5879Original colors & callouts · Select to enlarge

8. Fill and bleed the cooling system. Refer to: Cooling System Draining and Vacuum Filling .

REMOVAL AND INSTALLATION > COOLING FAN MOTOR AND SHROUD

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

REMOVAL AND INSTALLATION > COOLING FAN MOTOR AND SHROUD > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Drain the cooling system. Refer to: Cooling System Draining and Vacuum Filling .

2. Remove the air cleaner. Refer to: AIR CLEANER - 2.3L EcoBoost (231kW/314PS).

3. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).
