Coolant Pump — Installation — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5877

Coolant Pump — original illustration 1, reference 5877Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > COOLANT PUMP > INSTALLATION

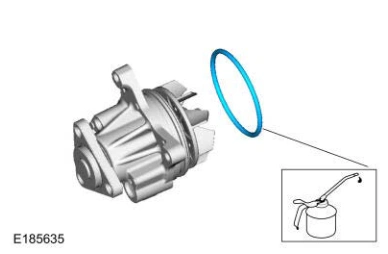

1. Install a new coolant pump O-ring seal and lubricate it with clean engine coolant.

Material

: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)

Coolant Pump — original illustration 2, reference 5877Original colors & callouts · Select to enlarge

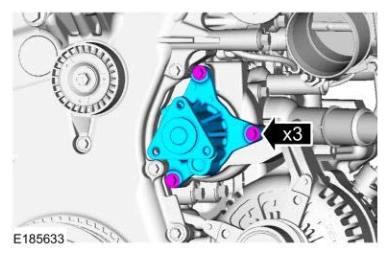

2. Install the coolant pump and the bolts.

Torque

: 89 lb.in (10 Nm)

Coolant Pump — original illustration 3, reference 5877Original colors & callouts · Select to enlarge
