Coolant Pump — Installation — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5878

Position the coolant pump pulley and install the bolts finger tight.

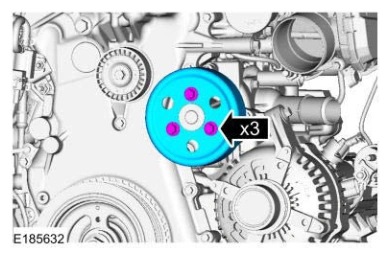

Coolant Pump — original illustration 1, reference 5878Original colors & callouts · Select to enlarge

4. Rotate the accessory drive belt tensioner counter clockwise and position back the accessory drive belt.

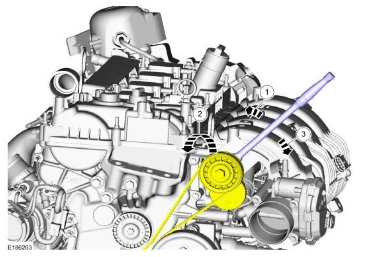

Coolant Pump — original illustration 2, reference 5878Original colors & callouts · Select to enlarge

5. Tighten the coolant pump pulley bolts.

Torque

: 177 lb.in (20 Nm)

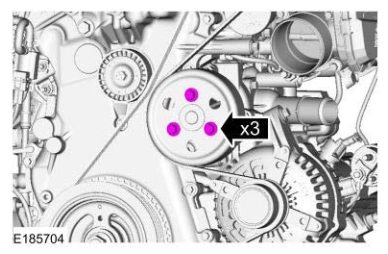

Coolant Pump — original illustration 3, reference 5878Original colors & callouts · Select to enlarge

6. Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).
