Cooling Fan Motor And Shroud — Removal — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5880

4. Remove the bolts and position the degas bottle aside.

Torque

: 80 lb.in (9 Nm)

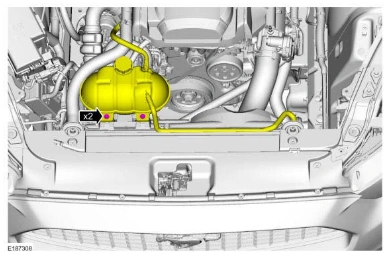

Cooling Fan Motor And Shroud — original illustration 1, reference 5880Original colors & callouts · Select to enlarge

5. Disconnect the cooling fan electrical connectors and detach the wiring harness retainers.

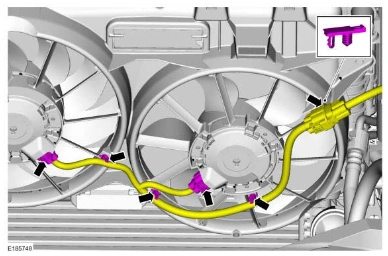

Cooling Fan Motor And Shroud — original illustration 2, reference 5880Original colors & callouts · Select to enlarge

6. Release the clamp and disconnect the upper radiator hose.

Use the General Equipment: Hose Clamp Remover/Installer

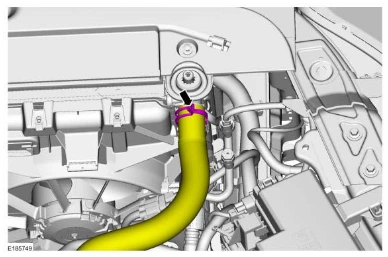

Cooling Fan Motor And Shroud — original illustration 3, reference 5880Original colors & callouts · Select to enlarge

7. Remove the bolts.
