Coolant Pump — Removal

Engine Cooling - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 5,876HTML edition
← Chapter contentsManual collection
Coolant Pump — original illustration 1, reference 5876Original colors & callouts · Select to enlarge

NOTE: Cover the accessory drive and A/C belts to prevent coolant contamination of the belts.

6. Completely cover the accessory drive and A/C belts with waterproof plastic.

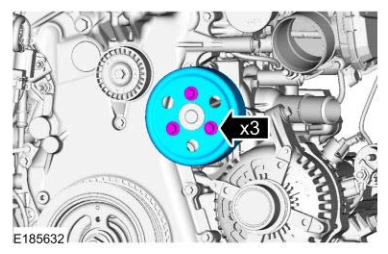

7. Remove the bolts and the coolant pump pulley.

Coolant Pump — original illustration 2, reference 5876Original colors & callouts · Select to enlarge

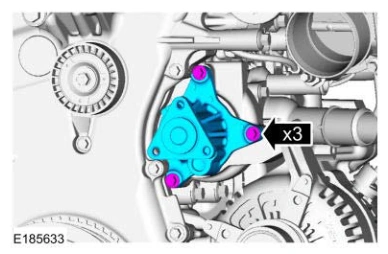

8. Remove the bolts and the coolant pump.

Coolant Pump — original illustration 3, reference 5876Original colors & callouts · Select to enlarge

9. Remove and discard the coolant pump O-ring seal.

Ford_Mustang_all_2015-2017.pdf · source reference 5876
