Valve Cover — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,763HTML edition
← Chapter contentsManual collection

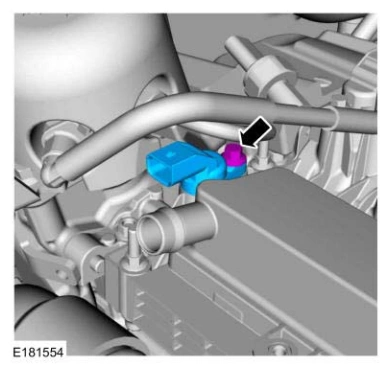

7. Remove the bolt and the exhaust CMP sensor.

Valve Cover — original illustration 1, reference 4763Original colors & callouts · Select to enlarge

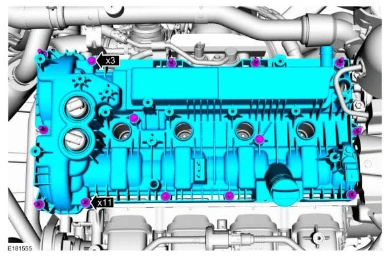

8. Loosen the fasteners and remove the valve cover.

Valve Cover — original illustration 2, reference 4763Original colors & callouts · Select to enlarge

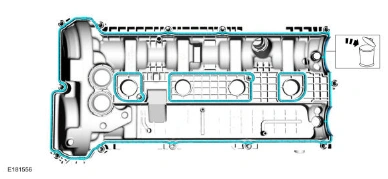

9. Remove and discard the valve cover gasket.

Valve Cover — original illustration 3, reference 4763Original colors & callouts · Select to enlarge

10.

NOTE: The VCT oil control solenoid seals should only be replaced if they are damaged.
