Valve Cover — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,762HTML edition
← Chapter contentsManual collection

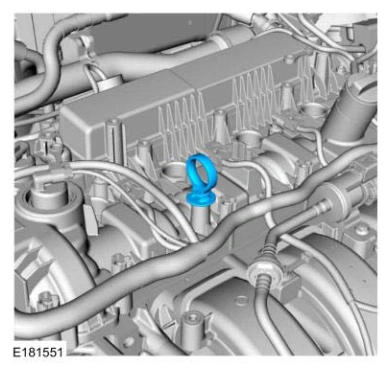

Valve Cover — original illustration 1, reference 4762Original colors & callouts · Select to enlarge

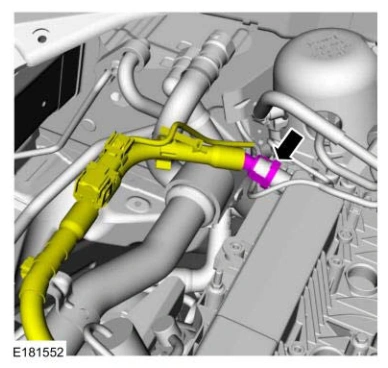

5. Disconnect the crankcase vent tube quick release connector from the valve cover.

Valve Cover — original illustration 2, reference 4762Original colors & callouts · Select to enlarge

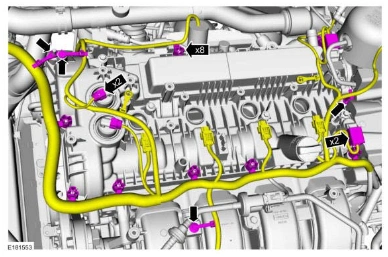

6. Disconnect the VCT oil control solenoid electrical connectors.

Disconnect the CMP sensor electrical connectors.

Detach the wiring harness retainers.

Valve Cover — original illustration 3, reference 4762Original colors & callouts · Select to enlarge
