Timing Chain — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,758HTML edition
← Chapter contentsManual collection

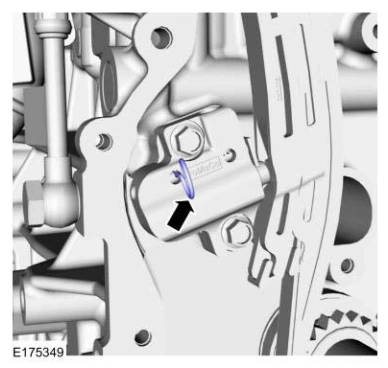

Timing Chain — original illustration 1, reference 4758Original colors & callouts · Select to enlarge

NOTE: Use an open-ended wrench to prevent the component from turning.

8. Using an open-ended wrench, tighten the intake VCT unit bolt.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60°

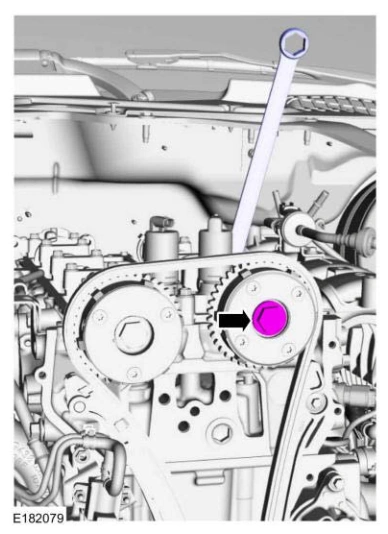

Timing Chain — original illustration 2, reference 4758Original colors & callouts · Select to enlarge

NOTE: Use an open-ended wrench to prevent the component from turning.

9.
