Timing Chain — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4753

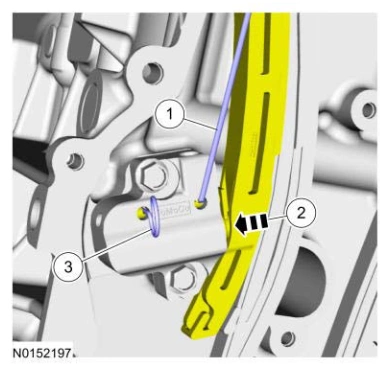

Using a small pick, release and hold the ratchet mechanism.

2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.

3. Insert a holding pin into the hole to retain the tensioner.

Timing Chain — original illustration 1, reference 4753Original colors & callouts · Select to enlarge

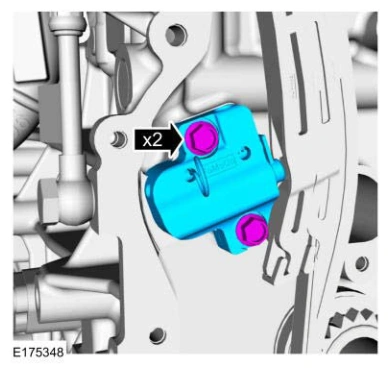

8. Remove the bolts and the timing chain tensioner.

Timing Chain — original illustration 2, reference 4753Original colors & callouts · Select to enlarge

9. Remove the timing chain tensioner arm.

Remove the timing chain.

Remove the bolts and the timing chain guide.
