Oil Pump — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,748HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 4748Original colors & callouts · Select to enlarge

38. Install the engine front cover. Refer to: Engine Front Cover .

39. Connect the battery ground. Refer to: Battery Disconnect and Connect .

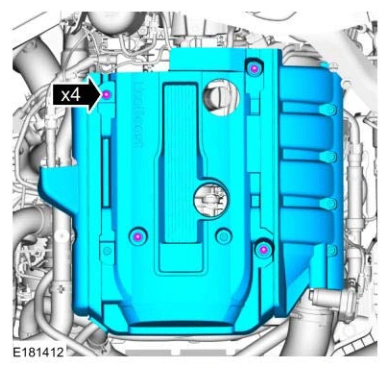

40. Install the engine appearance cover and the nuts.

Torque

: 80 lb.in (9 Nm)

Oil Pump — original illustration 2, reference 4748Original colors & callouts · Select to enlarge

41. Remove the holding device.
