Oil Pump — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,746HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 4746Original colors & callouts · Select to enlarge

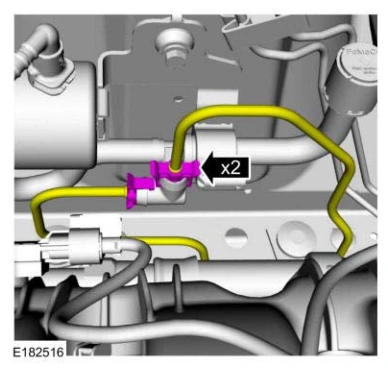

32. Connect the vacuum tubes to the engine mount control vacuum reservoir.

Oil Pump — original illustration 2, reference 4746Original colors & callouts · Select to enlarge

33. Install the RH and LH engine mount bracket nuts.

Torque

: 92 lb.ft (125 Nm)

Oil Pump — original illustration 3, reference 4746Original colors & callouts · Select to enlarge

34. Remove the retaining pins.
