Oil Pump — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4744

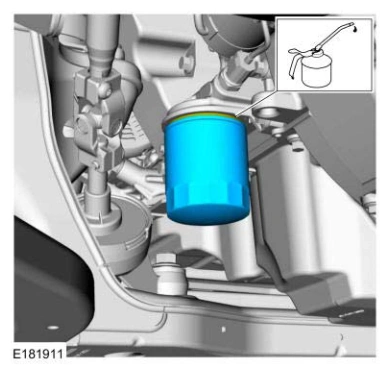

NOTE: Lubricate the engine oil filter seal with clean engine oil.

26. Install a new engine oil filter.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Torque

Stage 1: 71 lb.in (8 Nm)

Stage 2: 180°

Oil Pump — original illustration 1, reference 4744Original colors & callouts · Select to enlarge

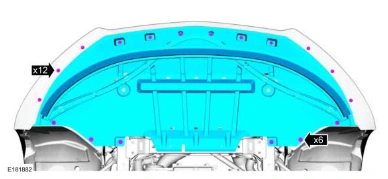

27. Install the underbody shield, bolts and the pin-type retainers.

Oil Pump — original illustration 2, reference 4744Original colors & callouts · Select to enlarge

28.

1. Install the underbody shield and the bolts.

Torque

: 46 lb.ft (63 Nm)
