Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,725HTML edition
← Chapter contentsManual collection

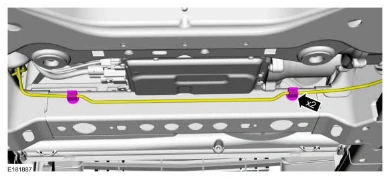

Oil Pump — original illustration 1, reference 4725Original colors & callouts · Select to enlarge

23. Remove the bolts from the support bar.

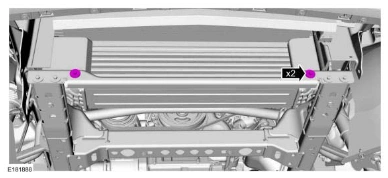

Oil Pump — original illustration 2, reference 4725Original colors & callouts · Select to enlarge

24. Remove the oil pan bolt.

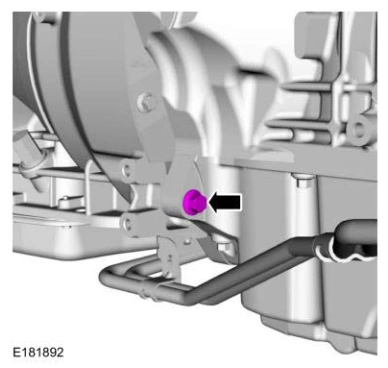

Oil Pump — original illustration 3, reference 4725Original colors & callouts · Select to enlarge

25. Using an adjustable stand, support the subframe.

Use the General Equipment: Vehicle/Axle Stands

Ford_Mustang_all_2015-2017.pdf · source reference 4725
