Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,723HTML edition
← Chapter contentsManual collection

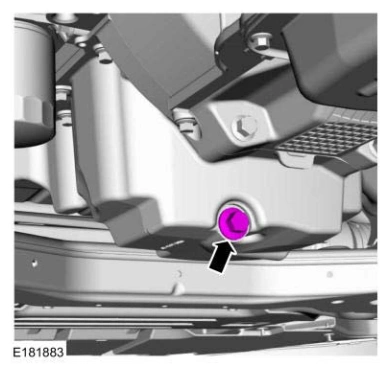

: 20 lb.ft (27 Nm)

Oil Pump — original illustration 1, reference 4723Original colors & callouts · Select to enlarge

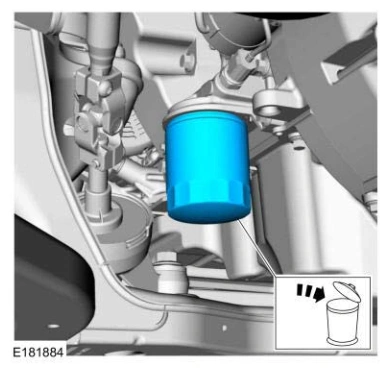

19. Remove and discard the engine oil filter.

Use the General Equipment: Oil Drain Equipment

Oil Pump — original illustration 2, reference 4723Original colors & callouts · Select to enlarge

20.

WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
