Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,721HTML edition
← Chapter contentsManual collection

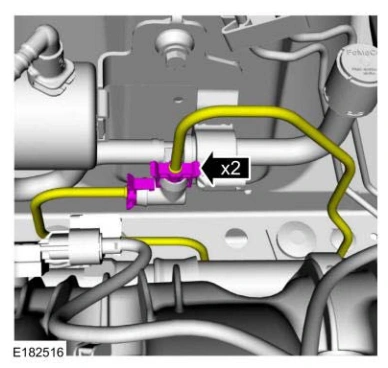

Disconnect the vacuum tubes from the engine mount control vacuum reservoir.

Oil Pump — original illustration 1, reference 4721Original colors & callouts · Select to enlarge

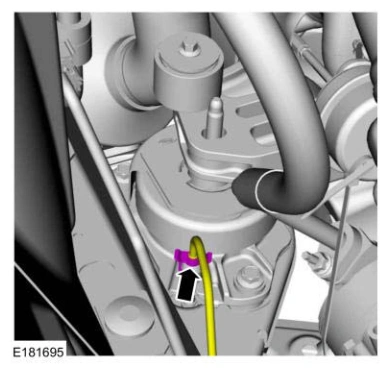

13. Disconnect the vacuum tube from the RH engine mount.

Oil Pump — original illustration 2, reference 4721Original colors & callouts · Select to enlarge

NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, position the legs on the body structure near the suspension strut tower. Failure to follow these instructions may result in body damage.

14. Install the special tool to support the engine.

Install Special Service Tool: 303-F072 Support Bar, Engine.
