Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,719HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 4719Original colors & callouts · Select to enlarge

5. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .

6. Remove the engine front cover. Refer to: Engine Front Cover .

7. Install the special tool on the LH side of the cylinder head.

Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

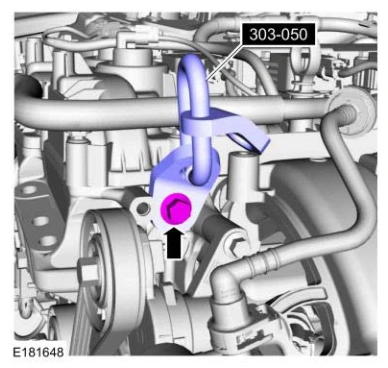

Oil Pump — original illustration 2, reference 4719Original colors & callouts · Select to enlarge

NOTE: Coolant tube removed for clarity.

8. Install the special tool on the RH side of the cylinder head.

Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
