Oil Pump — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4716

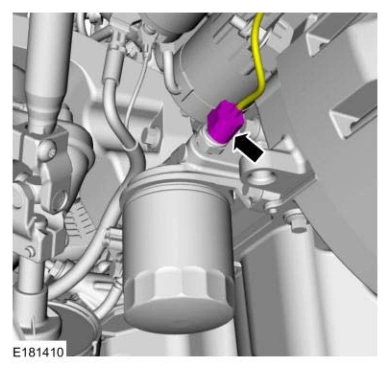

Oil Pump — original illustration 1, reference 4716Original colors & callouts · Select to enlarge

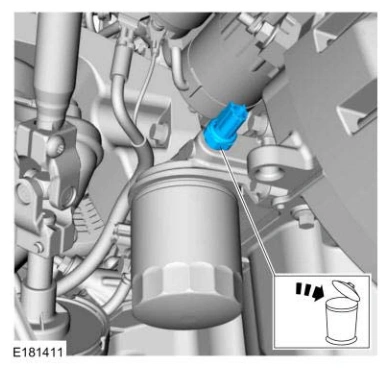

3. Remove and discard the oil pressure switch.

Torque

: 133 lb.in (15 Nm)

Oil Pump — original illustration 2, reference 4716Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > OIL PRESSURE SWITCH > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > OIL PUMP

Special Tool(s) / General Equipment
