Oil Pan — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4714

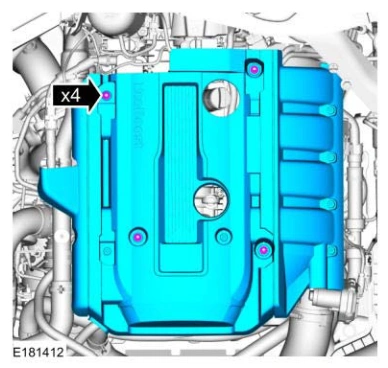

Torque

: 80 lb.in (9 Nm)

Oil Pan — original illustration 1, reference 4714Original colors & callouts · Select to enlarge

40. Remove the holding device.

Oil Pan — original illustration 2, reference 4714Original colors & callouts · Select to enlarge

41.

1. Position the steering column dash seal.

2. Tighten the steering column dash seal nuts.

Torque

: 80 lb.in (9 Nm)
