Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,713HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4713Original colors & callouts · Select to enlarge

36. Connect the battery ground. Refer to: Battery Disconnect and Connect .

37. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

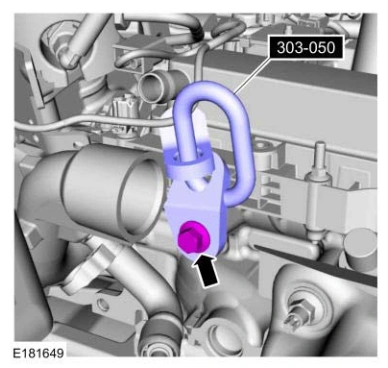

Oil Pan — original illustration 2, reference 4713Original colors & callouts · Select to enlarge

38. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

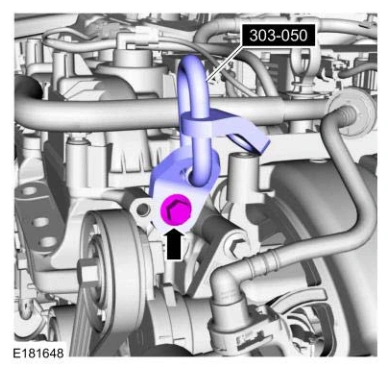

Oil Pan — original illustration 3, reference 4713Original colors & callouts · Select to enlarge

39. Install the engine appearance cover and the nuts.
