Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,710HTML edition
← Chapter contentsManual collection

26. Install the underbody shield, bolts and the pin-type retainers.

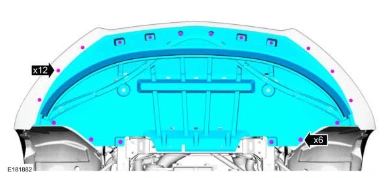

Oil Pan — original illustration 1, reference 4710Original colors & callouts · Select to enlarge

27.

1. Install the underbody shield and the bolts.

Torque

: 46 lb.ft (63 Nm)

2. Install the underbody shield screws.

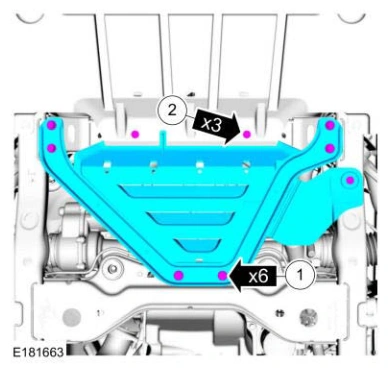

Oil Pan — original illustration 2, reference 4710Original colors & callouts · Select to enlarge

28. Install the front wheels and tires. Refer to: Wheel and Tire .

29. Remove Special Service Tool: 303-F072 Support Bar, Engine.
