Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,708HTML edition
← Chapter contentsManual collection

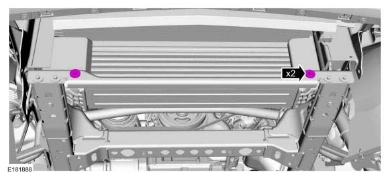

Oil Pan — original illustration 1, reference 4708Original colors & callouts · Select to enlarge

21. Attach the brake line retainers to the subframe.

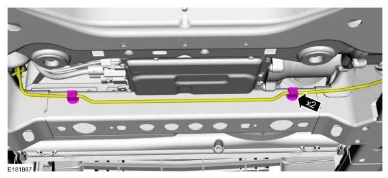

Oil Pan — original illustration 2, reference 4708Original colors & callouts · Select to enlarge

22. Attach the EPAS wiring harness pin-type retainers.

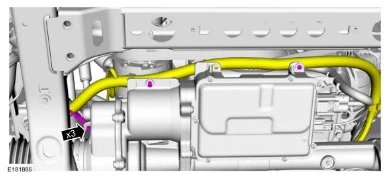

Oil Pan — original illustration 3, reference 4708Original colors & callouts · Select to enlarge

WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

23.

1. Connect the steering column shaft to the steering gear universal joint.

Ford_Mustang_all_2015-2017.pdf · source reference 4708
