Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,706HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4706Original colors & callouts · Select to enlarge

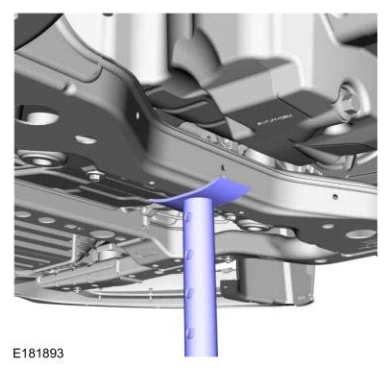

17. Remove the adjustable stand.

Use the General Equipment: Vehicle/Axle Stands

Oil Pan — original illustration 2, reference 4706Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

18. Install the oil pan bolt.

Torque

: 35 lb.ft (48 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4706
