Oil Pan — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4705

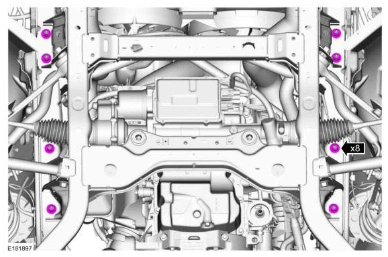

Oil Pan — original illustration 1, reference 4705Original colors & callouts · Select to enlarge

14. Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the subframe and body.

Align the subframe to the alignment marks made during removal.

Install the new rear subframe bolts loosely.

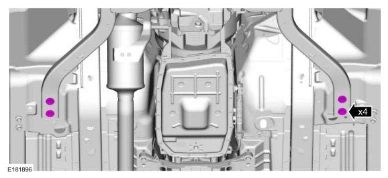

Oil Pan — original illustration 2, reference 4705Original colors & callouts · Select to enlarge

15. Tighten the rear subframe bolts in a cross pattern.

Torque

: 85 lb.ft (115 Nm)

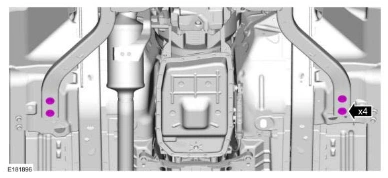

Oil Pan — original illustration 3, reference 4705Original colors & callouts · Select to enlarge

16. Tighten the front subframe nuts in a cross pattern.

Torque

: 85 lb.ft (115 Nm)
