Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,707HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4707Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

19. Tighten the bolts.

Torque

: 35 lb.ft (48 Nm)

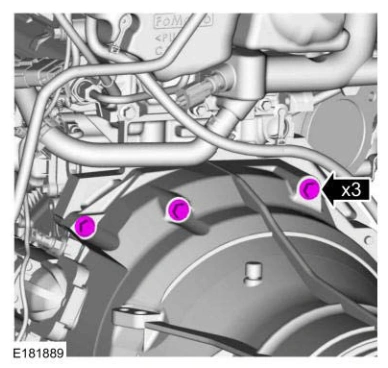

Oil Pan — original illustration 2, reference 4707Original colors & callouts · Select to enlarge

20. Install the bolts in the support bar.

Torque

: 89 lb.in (10 Nm)
