Oil Pan — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4709

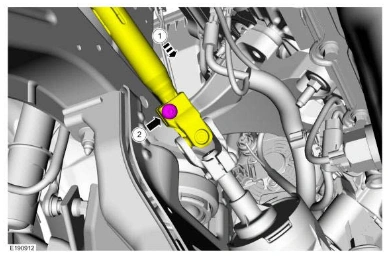

2. Install the new steering column shaft bolt.

Torque

: 22 lb.ft (30 Nm)

Oil Pan — original illustration 1, reference 4709Original colors & callouts · Select to enlarge

24. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .

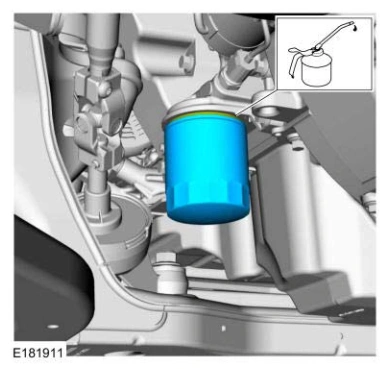

NOTE: Lubricate the engine oil filter seal with clean engine oil.

25. Install a new engine oil filter.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 180°

Oil Pan — original illustration 2, reference 4709Original colors & callouts · Select to enlarge
