Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,711HTML edition
← Chapter contentsManual collection

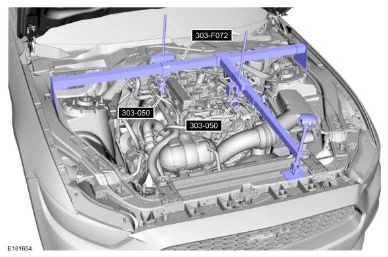

Oil Pan — original illustration 1, reference 4711Original colors & callouts · Select to enlarge

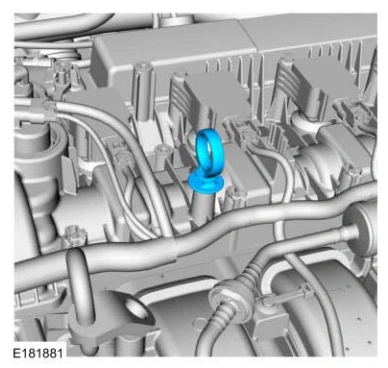

30. Install the oil level indicator.

Oil Pan — original illustration 2, reference 4711Original colors & callouts · Select to enlarge

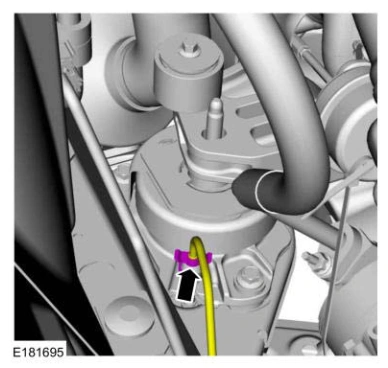

31. Connect the vacuum tube to the RH engine mount.

Oil Pan — original illustration 3, reference 4711Original colors & callouts · Select to enlarge

32. Connect the vacuum tubes to the engine mount control vacuum reservoir.
