Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,702HTML edition
← Chapter contentsManual collection

Torque

: 35 lb.ft (48 Nm)

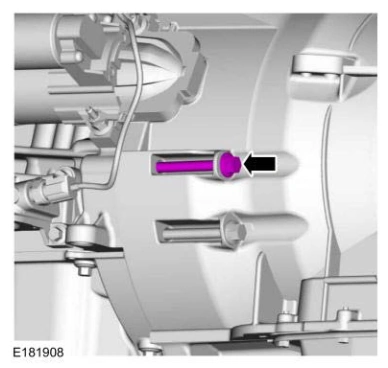

Oil Pan — original illustration 1, reference 4702Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

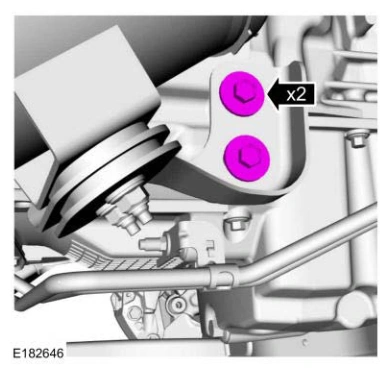

8. Install the bolts for the catalytic converter bracket.

Torque

: 18 lb.ft (25 Nm)

Oil Pan — original illustration 2, reference 4702Original colors & callouts · Select to enlarge

9. Using an adjustable stand, raise the subframe.

Use the General Equipment: Vehicle/Axle Stands
