Oil Pan — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4701

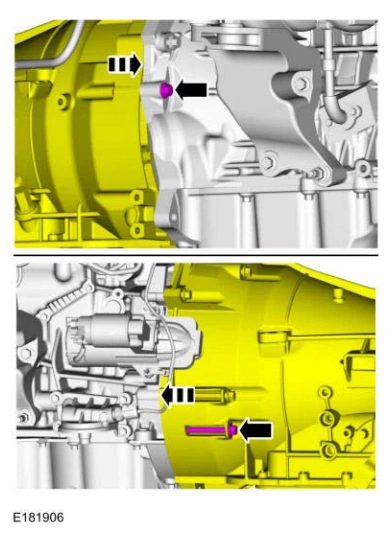

Oil Pan — original illustration 1, reference 4701Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

6. Tighten the bolt.

Torque

: 35 lb.ft (48 Nm)

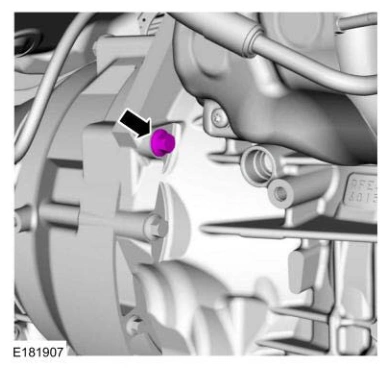

Oil Pan — original illustration 2, reference 4701Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

7. Tighten the bolt.
