Oil Pan — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4700

Oil Pan — original illustration 1, reference 4700Original colors & callouts · Select to enlarge

4. Tighten the oil pan bolts.

Torque

: 18 lb.ft (25 Nm)

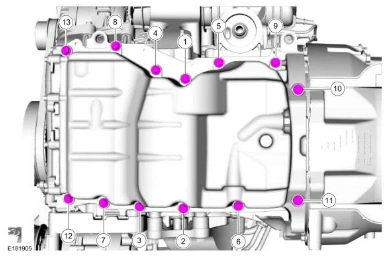

Oil Pan — original illustration 2, reference 4700Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

5. Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transmission and engine together.

Torque

: 35 lb.ft (48 Nm)
