REMOVAL AND INSTALLATION > OIL PAN > INSTALLATION
6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

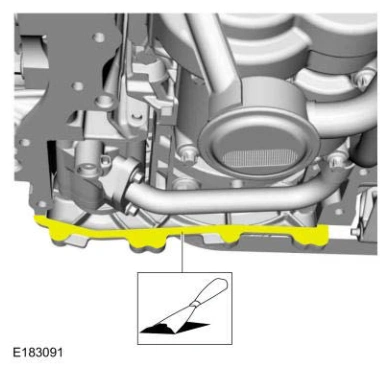

1. Apply a 3 mm (0.19 in) bead of silicone sealant.
Material
: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
