Oil Pan — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,699HTML edition
← Chapter contentsManual collection

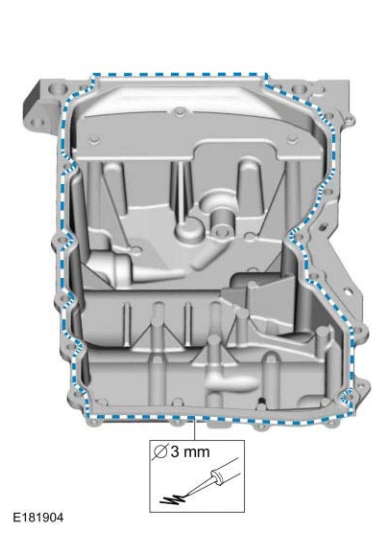

Oil Pan — original illustration 1, reference 4699Original colors & callouts · Select to enlarge

2. Install the oil pan and the bolts finger tight.

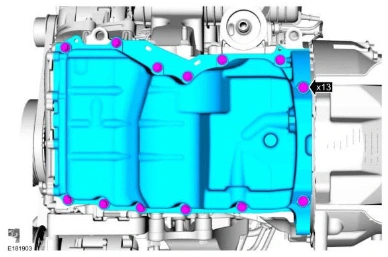

Oil Pan — original illustration 2, reference 4699Original colors & callouts · Select to enlarge

NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

3. Install the engine front cover bolts.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4699
