Oil Pan — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4695

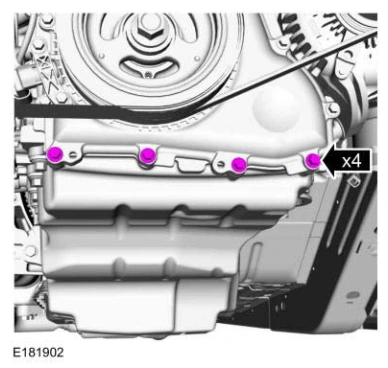

Oil Pan — original illustration 1, reference 4695Original colors & callouts · Select to enlarge

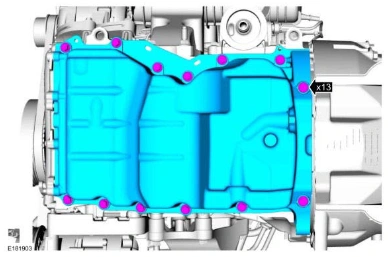

40. Remove the bolts and the oil pan.

Oil Pan — original illustration 2, reference 4695Original colors & callouts · Select to enlarge

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

41. Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B
