Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,694HTML edition
← Chapter contentsManual collection

NOTE: Automatic transmission shown in illustration, manual transmission similar.

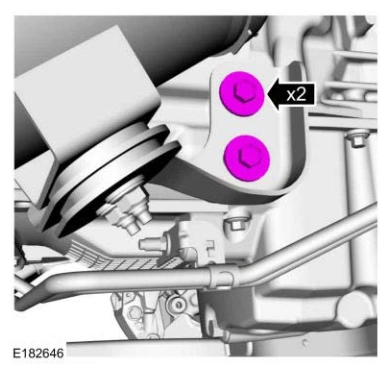

37. Remove the bolts for the catalytic converter bracket.

Oil Pan — original illustration 1, reference 4694Original colors & callouts · Select to enlarge

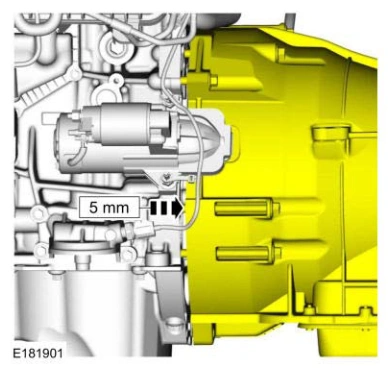

38. Separate the engine from the transmission 5 mm (0.19 in).

Oil Pan — original illustration 2, reference 4694Original colors & callouts · Select to enlarge

39. Remove the engine front cover bolts.

Ford_Mustang_all_2015-2017.pdf · source reference 4694
