Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,693HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4693Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

NOTE: Automatic transmission shown in illustration, manual transmission similar.

35. Remove the oil pan bolts.

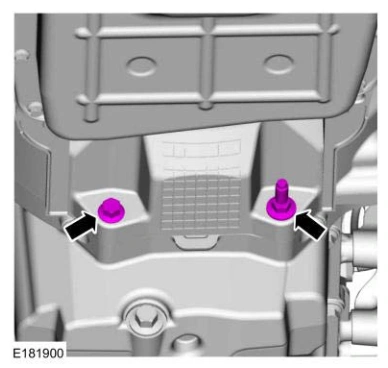

Oil Pan — original illustration 2, reference 4693Original colors & callouts · Select to enlarge

36. Using an adjustable stand, lower the subframe 102 mm (4.0 in).

Use the General Equipment: Vehicle/Axle Stands

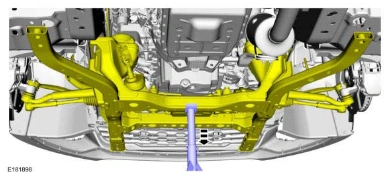

Oil Pan — original illustration 3, reference 4693Original colors & callouts · Select to enlarge
