Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,690HTML edition
← Chapter contentsManual collection

NOTE: Automatic transmission shown in illustration, manual transmission similar.

NOTE: To prevent damage to the transmission, do not loosen the engine- to-transmission fasteners more than 5 mm (0.19 in).

26. Loosen bolts 5 mm (0.19 in).

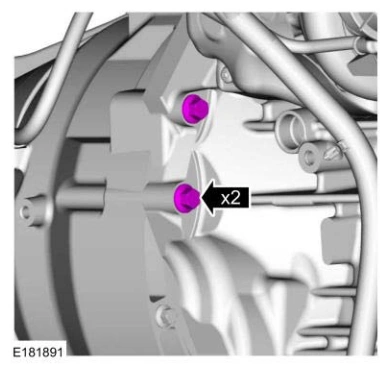

Oil Pan — original illustration 1, reference 4690Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

27. Remove the oil pan bolt.

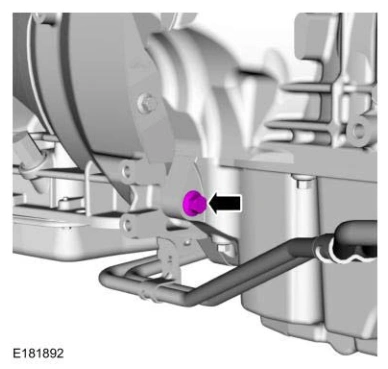

Oil Pan — original illustration 2, reference 4690Original colors & callouts · Select to enlarge

28. Using an adjustable stand, support the subframe.

Use the General Equipment: Vehicle/Axle Stands
