Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,689HTML edition
← Chapter contentsManual collection

to-engine fasteners more than 5 mm (0.19 in).

NOTE: Automatic transmission shown in illustration, manual transmission similar.

24. Loosen the bolts 5 mm (0.19 in).

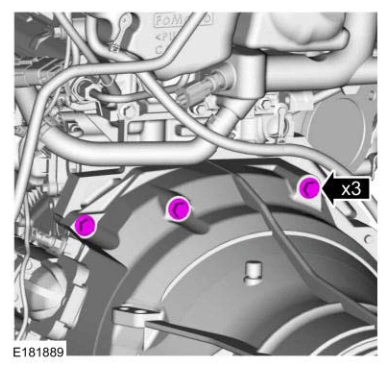

Oil Pan — original illustration 1, reference 4689Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

NOTE: To prevent damage to the transmission, do not loosen the transmission- to-engine fasteners more than 5 mm (0.19 in).

25. Loosen the bolts 5 mm (0.19 in).

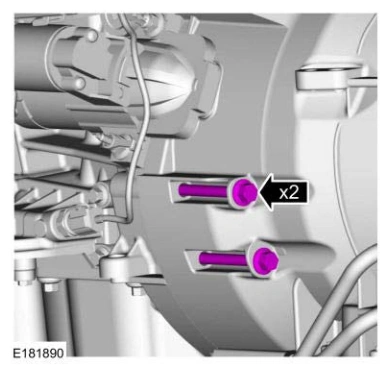

Oil Pan — original illustration 2, reference 4689Original colors & callouts · Select to enlarge
