Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,686HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4686Original colors & callouts · Select to enlarge

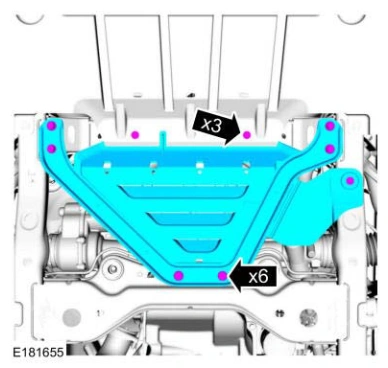

17. Remove the pin-type retainers, bolts and the underbody shield.

Oil Pan — original illustration 2, reference 4686Original colors & callouts · Select to enlarge

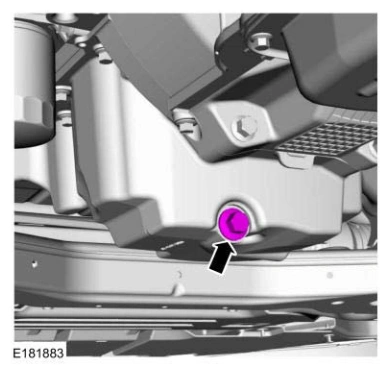

18. Drain engine oil and install drain plug.

Use the General Equipment: Oil Drain Equipment

Torque

: 20 lb.ft (27 Nm)

Oil Pan — original illustration 3, reference 4686Original colors & callouts · Select to enlarge

19.

Ford_Mustang_all_2015-2017.pdf · source reference 4686
