Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,683HTML edition
← Chapter contentsManual collection

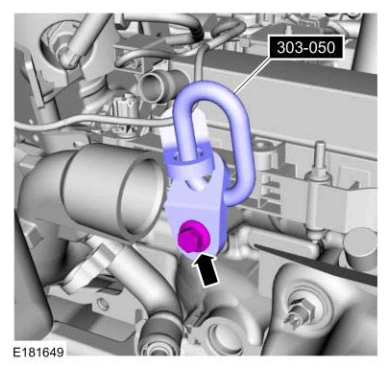

Oil Pan — original illustration 1, reference 4683Original colors & callouts · Select to enlarge

7. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .

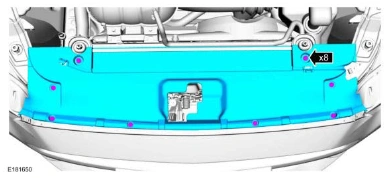

8. Remove the retainers and the radiator top shield.

Oil Pan — original illustration 2, reference 4683Original colors & callouts · Select to enlarge

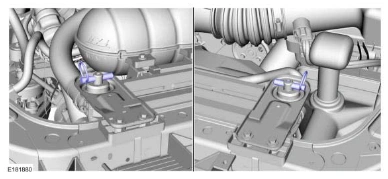

9. Install retaining pins to support cooling module.

Oil Pan — original illustration 3, reference 4683Original colors & callouts · Select to enlarge

10. Remove the RH and LH engine mount bracket nuts.
