Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,682HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4682Original colors & callouts · Select to enlarge

5. Install the special tool on the LH side of the cylinder head.

Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

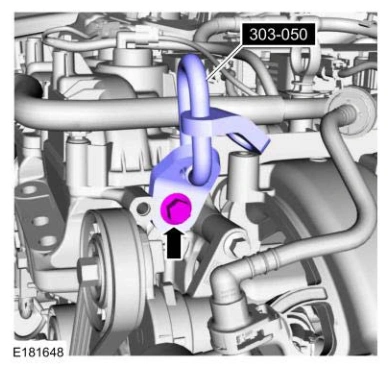

Oil Pan — original illustration 2, reference 4682Original colors & callouts · Select to enlarge

NOTE: Coolant tube removed for clarity.

6. Install the special tool on the RH side of the cylinder head.

Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
