NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, position the legs on the body structure near the suspension strut tower. Failure to follow these instructions may result in body damage.

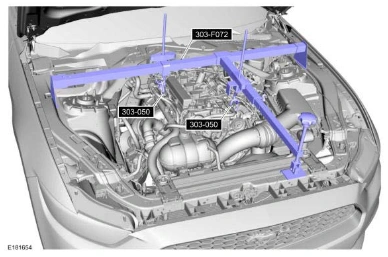

14. Install the special tool to support the engine. Install Special Service Tool: 303-F072 Support Bar, Engine.
15. Remove the front wheels and tires. Refer to: Wheel and Tire .
16. Remove the screws, bolts and the underbody shield.
