Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,684HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4684Original colors & callouts · Select to enlarge

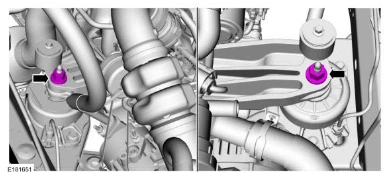

11. Disconnect the vacuum tubes from the engine mount control vacuum reservoir.

Oil Pan — original illustration 2, reference 4684Original colors & callouts · Select to enlarge

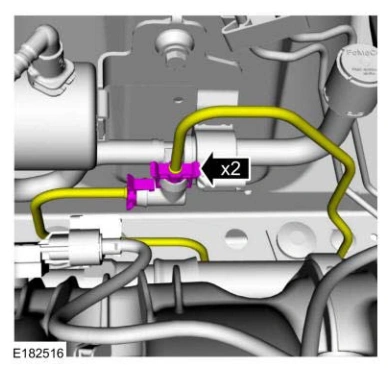

12. Disconnect the vacuum tube from the RH engine mount.

Oil Pan — original illustration 3, reference 4684Original colors & callouts · Select to enlarge

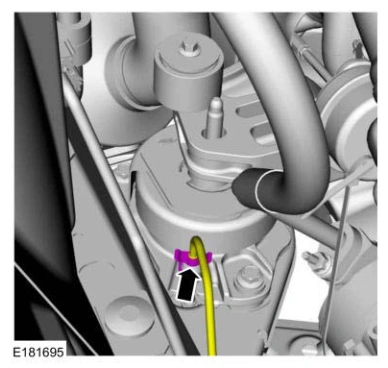

13. Remove the oil level indicator.
