Oil Pan — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,681HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 4681Original colors & callouts · Select to enlarge

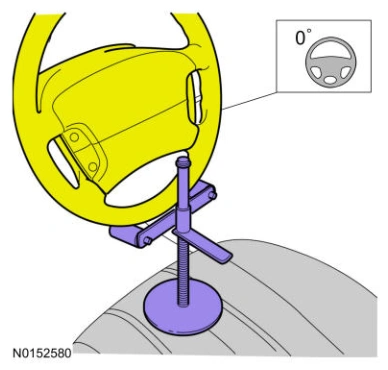

3. Using a holding device, hold the steering wheel in the straight-ahead position.

Oil Pan — original illustration 2, reference 4681Original colors & callouts · Select to enlarge

4. Remove the nuts and the engine appearance cover.
