Intake Manifold — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,678HTML edition
← Chapter contentsManual collection
Intake Manifold — original illustration 1, reference 4678Original colors & callouts · Select to enlarge

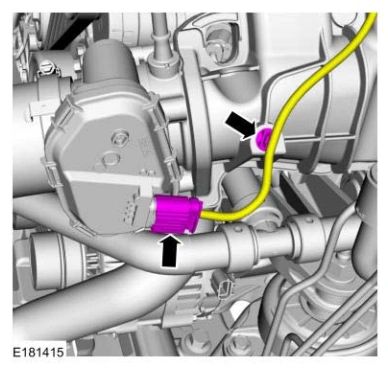

8. Connect the MAPT sensor electrical connector and the wire harness retainers.

Intake Manifold — original illustration 2, reference 4678Original colors & callouts · Select to enlarge

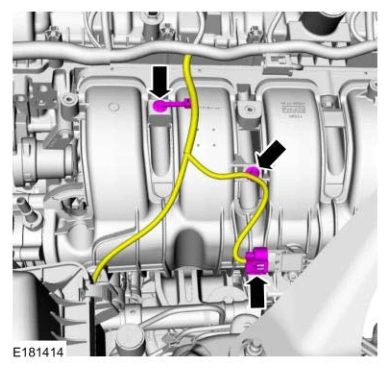

9. Install the EVAP canister purge valve and the bolt.

Torque

: 71 lb.in (8 Nm)

Connect the EVAP canister purge valve electrical connector.

Attach the fuel tube and EVAP tube to the retainer on the intake manifold.

Connect the EVAP canister purge valve quick release coupling at the front of the intake manifold.

Ford_Mustang_all_2015-2017.pdf · source reference 4678
